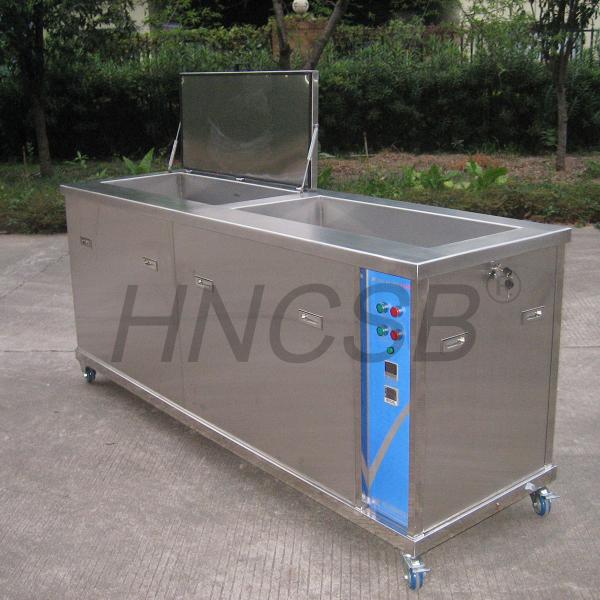

Fuel Pumps Engine Ultrasonic Tank Cleaner Machine With Rinsing Tank

The usage of ultrasonic cleaning and emulsification is a state of the art method. The principle is based on the cavitation effect being generated in liquid through 25-80KHZ ultrasonic vibration frequency per second.

The high frequency electrical energy is converted into high frequency mechanical energy by the transducers . The transducer vibrate longitudinally and transfer this mothion as a pressure wave to the solvent , causing the lilquid to cavitate the rapid formation and collapse of many minute bubbles in the cleaning liquid. These bubbles create a mechanical scrubbing action, thoroughly removing soluble and insoluble soils.

Application as below:

Aerospace

Clean critical avitation parts from sensitive

Auto Motive

Clean fuel pumps and injectors,camshafts,gears,and bearings,postons,starters and throttle assemblies.

Industrial

Clean carbide inserts and tools for coating,multi tooth and mills or bicycle parts prior to reassembly,variety of machine parts for rebuilding and manufacturing.

Medical

Clean dental and surgical instruments . The cavitations process create a force that remove all contaminants without damaging the tools.

Some questions for customize ultrasonic cleaner:

1)Tank: one tank or multiple-tank

2)Tank size: length *width * height (mm).

3)Cleaning tank material:

high quality SUS304 stainless steel of thickness 2 mm;

high-quality SUS316 stainless steel of thickness 2 mm.

Remark: SUS304 stainless steel is prevent from weak acid, weak base and weak corrosive. At present, the SUS304 is an agreed materials by market to used as steel cleaing tank. If you need a strong acid, strong alkali or corrosive solution as a kind of ultrasonic cleaner, you should use SUS316 stainless steel ultrasonic cleaning tank. SUS316 stainless steel is resistant to strong acid, alkali and corrosive liquid.

4)Frequency selection:

Usually,the frequency of industrial ultrasonic cleaner on the market is 40 KHZ or 28 KHZ at present.However,you can choose the frequency according to your cleaning items and the difficulty of cleaning item’s besmirch,then customized cleaners accordingly.

5)Ultrasonic Frequency Range:

Low Frequency :17 KHZ, 20 KHZ, 25 KHZ, 28 KHZ, 40 KHZ

High Frequency: 68 KHZ, 80 KHZ, 120 KHZ, 132 KHZ, 200 KHZ

Reminder: The smaller ultrasonic frequency bring the greater strength of cleaning. For example, 28 KHZ frequency’s cleaning effect is greater than 40 KHZ.

6)Ultrasonic Power Choose:

The Ultrasonic Power is calculated according to your tank size and the quantity of industrial ultrasonic transducer.
Heating power:

Generally, if there is not specified degrees, we will install the heat plate according to the capacity size, and temperature is 20-80 degrees.

7)Time Settings:

At present,1 — 30 minutes is ok. You can fixed the time to be 1-9999 minutes adjustable according to your cleaning items requirements.

8)Design of Ultrasonic.

Vibration plate type, sticky bottom type and hanging type. Till now, all of ultrasonic is the sticky bottom type on market. You can customize vibration plate type or hanging type according to your clean items requirements.

OEM available:

We also can custom built the machine base on customer's requirements . Such as the custom built machine with these items : Filtration,weir tank , sparge bar , insulation tank and lid . Digital touch with automatic ultrasonic , agitation and filtration , heating,auxiliary timer etc .
